Price is for 1ea, Minumum buy is 10ea

1683, FSN6240-044-6914, MS35478-1683, GE Lamp
1683, FSN6240-044-6914, MS35478-1683, GE Lamp
Item# 1683
$2.58

Product Description

1683, FSN6240-044-6914, MS35478-1683, GE Lamp
GE Lighting 1683,6240-044-6914, MS35478-1683

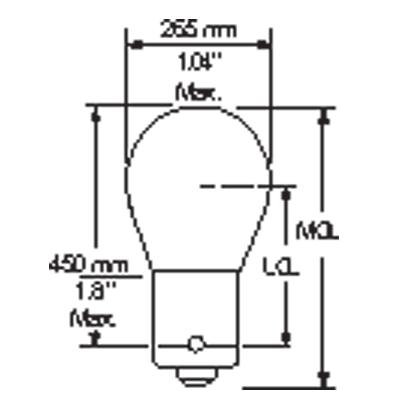

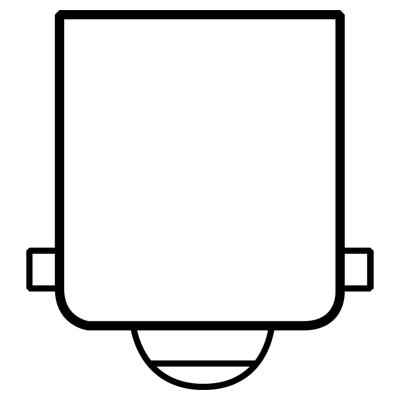

Lamp type Miniature - S Shape Bulb S8 Base Single Contact Bayonet (BA15s) Filament 2C-6 Wattage 29 Voltage 28 Voltage (MIN) 500 Rated Life 500 hrs Rated Life (MIN) 29 hrs Rated Life (Hor) 29 hrs Rated Life (Vert) 500 hrs Atmosphere Gas-filled Primary Application Aircraft; Low Voltage PHOTOMETRIC CHARACTERISTICS Initial Lumens 402 Initial Lumens (Hor) 13.86207 Initial Lumens (Vert) 402 Nominal Initial Lumens per Watt 13 Center Beam Candlepower (CBCP) 402 Mean Spherical Candlepower (MSCP) 32 DIMENSIONS Maximum Overall Length (MOL) 2.0000 in (50.8 mm) Bulb Diameter (DIA) 1.000 in (25.4 mm) Light Center Length (LCL) 1.250 in (31.7 mm)
