4509, FSN6240-237-7867, MS25243-4509, GE Lamp

4509, FSN6240-237-7867, MS25243-4509, GE Lamp
Item# 4509
$12.32

Product Description

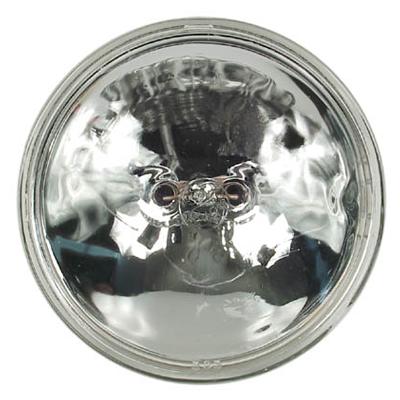

4509, FSN6240-237-7867, MS25243-4509, GE Lamp
GE Lighting 4509, FSN6240-237-7867, MS25243-4509

GENERAL CHARACTERISTICS: Lamp type Incandescent - PAR, Bulb PAR36, Base Screw Terminals, Filament C-6, Wattage 100, Voltage 13,

Rated Life 25 hrs, Primary Application Aircraft

PHOTOMETRIC CHARACTERISTICS: Beam Spread - Horizontal 12 - 10 %, Beam Spread - Vertical 6 - 10 %, Max. Beam Candlepower (MBCP) (MAX) 110000,

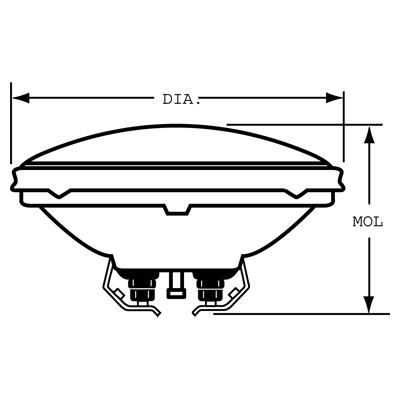

DIMENSIONS: Maximum Overall Length (MOL) 2.7500 in (69.8 mm) Bulb Diameter (DIA) 4.500 in (114.3 mm)
