Product Description
GE Lighitng 1691, 6240-295-2668, MS35478-1691
Lamp type Miniature - S Shape
Bulb S8

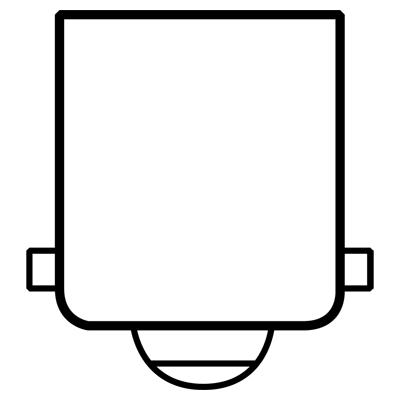

Base Single Contact Bayonet (BA15s)
Filament 2C-2R
Wattage 17
Voltage 28
Voltage (MIN) 1000
Rated Life 1000 hrs
Rated Life (MIN) 17 hrs
Rated Life (Hor) 17 hrs
Rated Life (Vert) 1000 hrs
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 188
Initial Lumens (Hor) 11.05882
Initial Lumens (Vert) 188
Nominal Initial Lumens per Watt 11
Center Beam Candlepower (CBCP) 188
Mean Spherical Candlepower (MSCP) 15

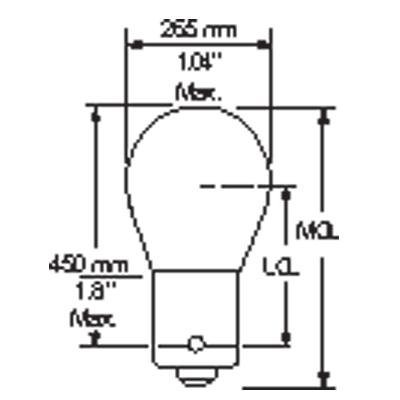

DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.120 in (28.4 mm)
