R&S Parts Distribution, Ltd. Great prices and great customer service
Price is for 1ea, minimum buy is 10ea.
Product Description
GE Lighitng 1665,6240-241-9703, MS35478-1665
Lamp type Miniature - S Shape
Bulb S8

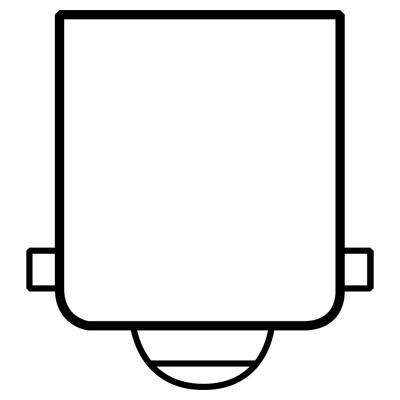

Base Single Contact Bayonet (BA15s)
Filament C-2V
Wattage 22
Voltage 28
Voltage (MIN) 1000
Rated Life 1000 hrs
Rated Life (MIN) 22 hrs
Rated Life (Hor) 22 hrs
Rated Life (Vert) 1000 hrs
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 264
Initial Lumens (Hor) 12
Initial Lumens (Vert) 264
Nominal Initial Lumens per Watt 12
Center Beam Candlepower (CBCP) 264
Mean Spherical Candlepower (MSCP) 21

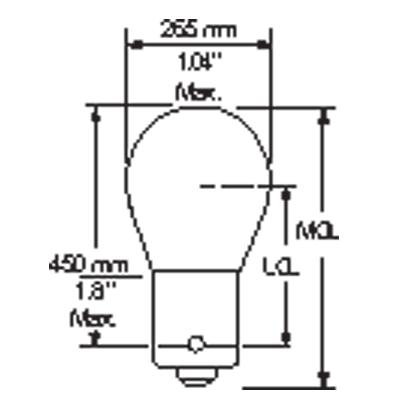

DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.120 in (28.4 mm)
