1982 GE Lamp

1982 GE Lamp
Item# 1982
$63.00

Product Description

1982 GE Lamp
1982 GE Lighitng

GENERAL CHARACTERISTICS:

Lamp type Miniature - T & TL Shape, Bulb T3, Base Single Contact Bayonet (BA15s), Filament CC-8, Wattage 75, Voltage 28

Rated Life 1000 hrs, Bulb Material Quartz, Atmosphere Gas-filled, Primary Application Aircraft; Low Voltage

PHOTOMETRIC CHARACTERISTICS:

Initial Lumens 1382, Nominal Initial Lumens per Watt 18, Mean Spherical Candlepower (MSCP) 110 DIMENSIONS:

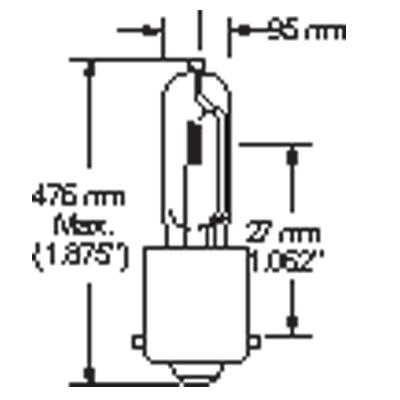

Maximum Overall Length (MOL) 1.8800 in (47.7 mm) Bulb Diameter (DIA) 0.375 in (9.5 mm) Light Center Length (LCL) 1.060 in (26.9 mm)
