1987, GE Lamp
Product Description
GE Lighitng 1987
GENERAL CHARACTERISTICS:
Lamp type Miniature - T & TL Shape
Bulb T4

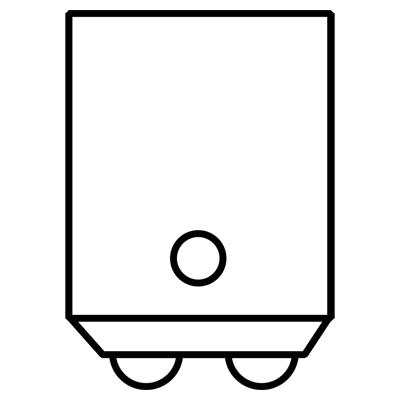

Base Double Contact Bayonet (BA15d)

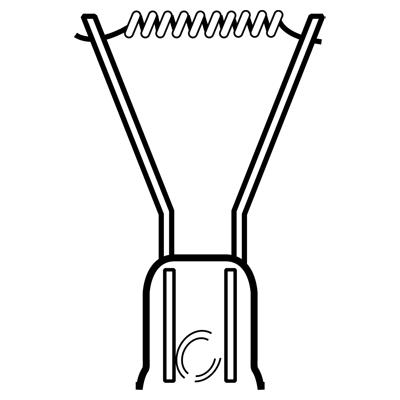

Filament CC-6
Wattage 150
Voltage 28
Rated Life 700 hrs
Bulb Material Quartz
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 3016
Nominal Initial Lumens per Watt 20
Mean Spherical Candlepower (MSCP) 240
DIMENSIONS
Maximum Overall Length (MOL) 2.4400 in (61.9 mm)
Bulb Diameter (DIA) 0.500 in (12.7 mm)
Light Center Length (LCL) 1.180 in (29.9 mm)
