Price is for 1ea, minimum buy is 10ea
Product Description
GE Lighitng 2233, FSN6240-01-015-6207, MS35478-2233
GENERAL CHARACTERISTICS
Lamp type Miniature - S Shape
Bulb S8

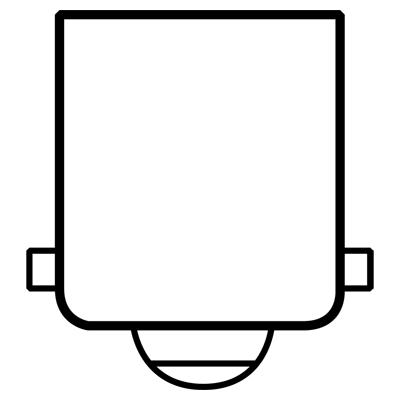

Base Single Contact Bayonet (BA15s)
Filament CC-8
Wattage 21
Voltage 28
Rated Life 2000 hrs
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 264
Nominal Initial Lumens per Watt 12
Mean Spherical Candlepower (MSCP) 21

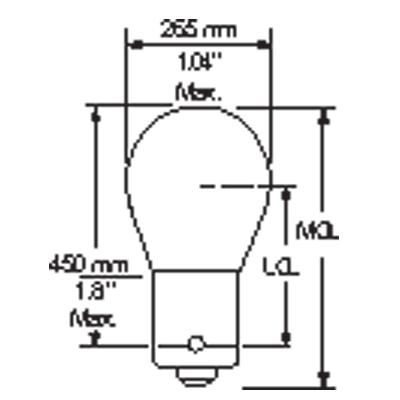

DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.190 in (30.2 mm)
