Product Description
GE Lighting 2232, MS35478-2232
GENERAL CHARACTERISTICS
Lamp type Miniature - S Shape
Bulb S8

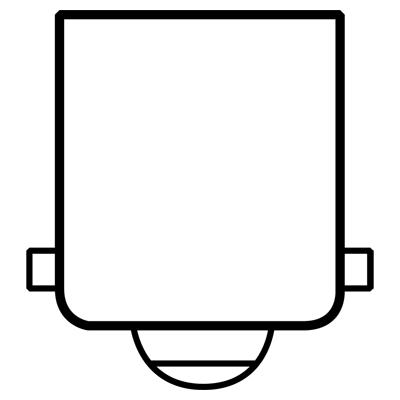

Base Single Contact Bayonet (BA15s)
Filament CC-8
Wattage 18
Voltage 28
Rated Life 2000 hrs
Atmosphere Gas-filled
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 226
Nominal Initial Lumens per Watt 12
Mean Spherical Candlepower (MSCP) 18

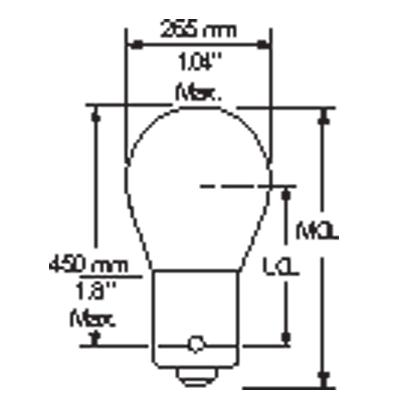

DIMENSIONS
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.190 in (30.2 mm)
