Price is for 1ea, Minimum order 10ea
Product Description
GE Lighting 302, FSN6240-155-7926, MS15613-2
GENERAL CHARACTERISTICS:
Lamp type Miniature - G Shape,
Bulb G5,

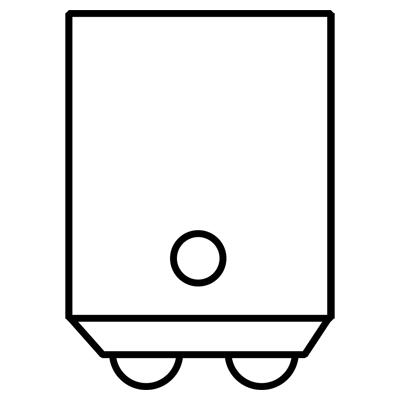

Base Double Contact Bayonet (BA15d),
Filament C-2F,
Wattage 5,
Voltage 28
Rated Life 500 hrs,
Bulb Material Lead glass ,
Atmosphere Vacuum,
Primary Application Aircraft; Low Voltage
PHOTOMETRIC CHARACTERISTICS:
Initial Lumens 38,
Nominal Initial Lumens per Watt 7,
Mean Spherical Candlepower (MSCP) 3,

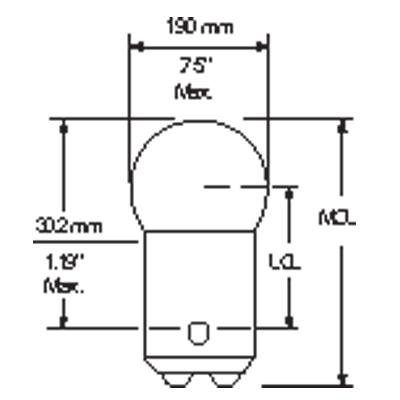

DIMENSIONS:
Maximum Overall Length (MOL) 1.2500 in (31.7 mm)
Bulb Diameter (DIA) 0.625 in (15.8 mm)
Light Center Length (LCL) 0.690 in (17.5 mm)
