Price is for 1ea, Minimum buy is 10ea
Product Description

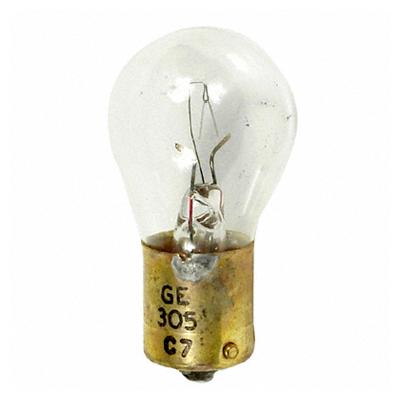

GE Lighting 305, FSN6240-155-7791, MS15569-305
GENERAL CHARACTERISTICS:
Lamp type Miniature - S Shape,
Bulb S8,
Base Single Contact Bayonet (BA15s),
Filament C-2V,
Wattage 14,
Voltage 28,
Voltage (MIN) 300,
Rated Life 300 hrs,
Rated Life (MIN) 14 hrs,
Rated Life (Hor) 14 hrs,
Rated Life (Vert) 300 hrs,
Bulb Material Lead glass,
Atmosphere Gas-filled,
Primary Application Aircraft; Low Voltage,
PHOTOMETRIC CHARACTERISTICS:
Initial Lumens 188,
Initial Lumens (Hor) 13.42857,
Initial Lumens (Vert) 188,
Nominal Initial Lumens per Watt 13,
Center Beam Candlepower (CBCP) 188,
Mean Spherical Candlepower (MSCP) 15,

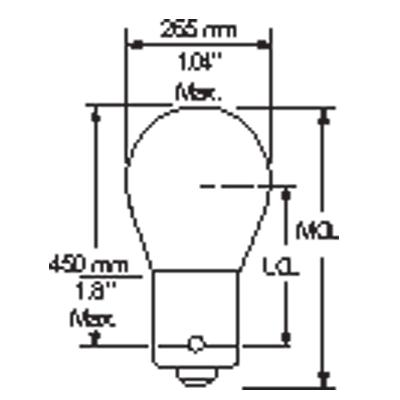

DIMENSIONS:
Maximum Overall Length (MOL) 2.0000 in (50.8 mm)
Bulb Diameter (DIA) 1.000 in (25.4 mm)
Light Center Length (LCL) 1.120 in (28.4 mm)
