Price is for 1ea, minimum buy 10ea

306, FSN6240-155-7795, MS15584-15, GE Lamp
306, FSN6240-155-7795, MS15584-15, GE Lamp
Item# 306
$2.51

Product Description

306, FSN6240-155-7795, MS15584-15, GE Lamp
GE Lighting 306, FSN6240-155-7795, MS15584-15

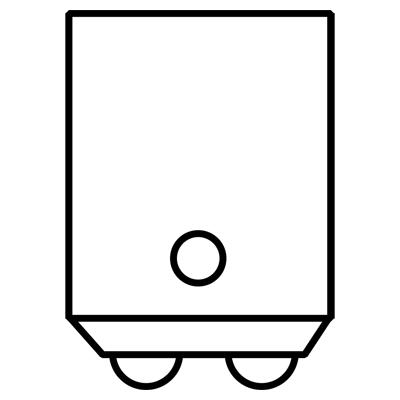

GENERAL CHARACTERISTICS: Lamp type Miniature - S Shape, Bulb S8, Base Double Contact Bayonet (BA15d), Filament C-2V, Wattage 14, Voltage 28, Voltage (MIN) 300,

Rated Life 300 hrs, Rated Life (MIN) 14 hrs, Rated Life (Hor) 14 hrs, Rated Life (Vert) 300 hrs, Bulb Material Lead glass, Atmosphere Gas-filled, Primary Application Aircraft; Low Voltage

PHOTOMETRIC CHARACTERISTICS: Initial Lumens 188, Initial Lumens (Hor) 13.42857, Initial Lumens (Vert) 188, Nominal Initial Lumens per Watt 13, Center Beam Candlepower (CBCP) 188, Mean Spherical Candlepower (MSCP) 15

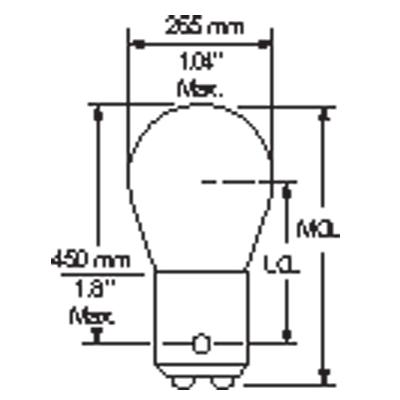

DIMENSIONS: Maximum Overall Length (MOL) 2.0000 in (50.8 mm) Bulb Diameter (DIA) 1.000 in (25.4 mm) Light Center Length (LCL) 1.120 in (28.4 mm)
