R&S Parts Distribution, Ltd. Great prices and great customer service

Price is for 1ea, Minimum buy is 10ea

327, FSN6240-155-7836, MS25237-327, GE Lamp
327, FSN6240-155-7836, MS25237-327, GE Lamp
Item# 327
$0.42

Product Description

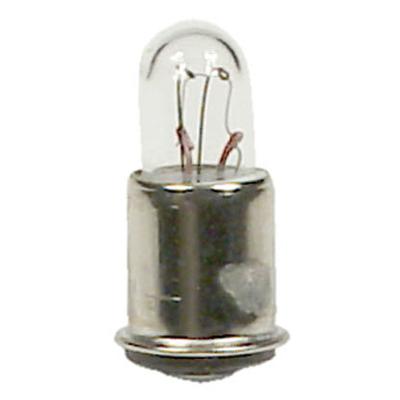

327, FSN6240-155-7836, MS25237-327, GE Lamp
GE Lighting 327, FSN6240-155-7836, MS25237-327

GENERAL CHARACTERISTICS:

Lamp type Miniature - T & TL Shape, Bulb T1.75 (T1 3/4), Base Single Contact Midget Flanged, Filament C-2F, Wattage 1, Voltage 28, Voltage (MIN) 4000 ,

Rated Life 4000 hrs, Rated Life (MIN) 1 hrs, Rated Life (Hor) 1 hrs, Rated Life (Vert) 4000 hrs , Atmosphere Vacuum, Primary Application Aircraft; Low Voltage

PHOTOMETRIC CHARACTERISTICS: Initial Lumens 4, Initial Lumens (Hor) 4, Initial Lumens (Vert) 4, Nominal Initial Lumens per Watt 4, Center Beam Candlepower (CBCP) 4, Mean Spherical Candlepower (MSCP) 0.34,

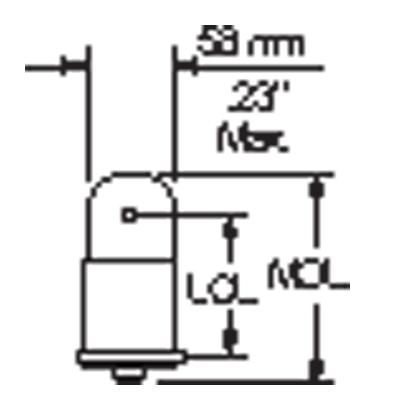

DIMENSIONS: Maximum Overall Length (MOL) 0.6300 in (16.0 mm) Bulb Diameter (DIA) 0.219 in (5.5 mm) Light Center Length (LCL) 0.380 in (9.6 mm)
