R&S Parts Distribution, Ltd. Great prices and great customer service

Price is for 1ea, Minimum buy is 10ea

328, FSN6240-155-7857, MS25237-328, GE Lamp
328, FSN6240-155-7857, MS25237-328, GE Lamp
Item# 328
$0.41

Product Description

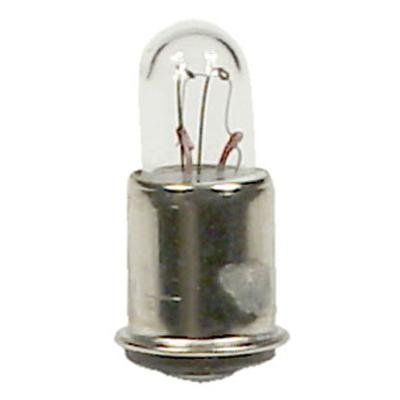

328, FSN6240-155-7857, MS25237-328, GE Lamp
GE Lighting 328, FSN6240-155-7857, MS25237-328

GENERAL CHARACTERISTICS:

Lamp type Miniature - T & TL Shape, Bulb T1.75 (T1 3/4), Base Single Contact Midget Flanged, Filament C-2R, Wattage 1, Voltage 6, Voltage (MIN) 1000,

Rated Life 1000 hrs, Rated Life (MIN) 1 hrs, Rated Life (Hor) 1 hrs, Rated Life (Vert) 1000 hrs, Atmosphere Vacuum, Primary Application Aircraft; Low Voltage

PHOTOMETRIC CHARACTERISTICS: Initial Lumens 4, Initial Lumens (Hor) 4, Initial Lumens (Vert) 4, Nominal Initial Lumens per Watt 4, Center Beam Candlepower (CBCP) 4, Mean Spherical Candlepower (MSCP) 0.34,

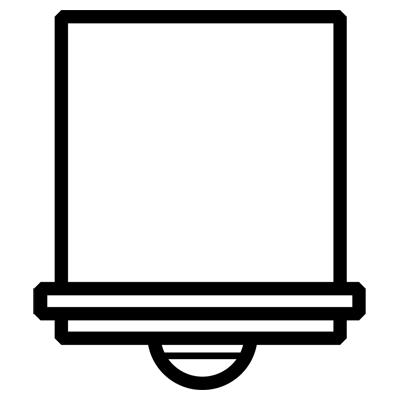

DIMENSIONS: Maximum Overall Length (MOL) 0.6300 in (16.0 mm) Bulb Diameter (DIA) 0.219 in (5.5 mm) Light Center Length (LCL) 0.380 in (9.6 mm)
