Product Description
GE Lighting 330, FSN6240-851-4352, MS25237-330
GENERAL CHARACTERISTICS:
Lamp type Miniature - T & TL Shape,
Bulb T1.75 (T1 3/4),
Base Single Contact Midget Flanged,
Filament C-2F,
Wattage 1,
Voltage 14,
Voltage (MIN) 1500,
Rated Life 1500 hrs,
Rated Life (MIN) 1 hrs,
Rated Life (Hor) 1 hrs,
Rated Life (Vert) 1500 hrs,
Atmosphere Vacuum,
Primary Application Instrument, General; Aircraft; Low, Voltage; Directional Signal Indicator
PHOTOMETRIC CHARACTERISTICS:
Initial Lumens 6,
Initial Lumens (Hor) 6,
Initial Lumens (Vert) 6,
Nominal Initial Lumens per Watt 6,
Center Beam Candlepower (CBCP) 6,
Mean Spherical Candlepower (MSCP) 0.5,

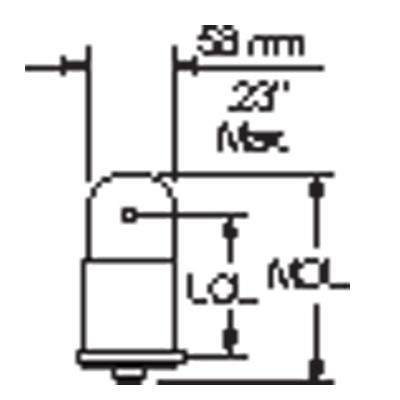

DIMENSIONS:
Maximum Overall Length (MOL) 0.6300 in (16.0 mm)
Bulb Diameter (DIA) 0.219 in (5.5 mm)
Light Center Length (LCL) 0.380 in (9.6 mm)
