4595, FSN6240-954-5503, GE Lamp
Product Description

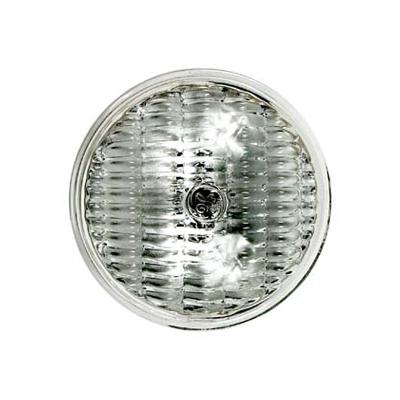

GE Lighting 4595, FSN6240-954-5503
GENERAL CHARACTERISTICS:
Lamp type Sealed Beam - PAR,
Bulb PAR36,

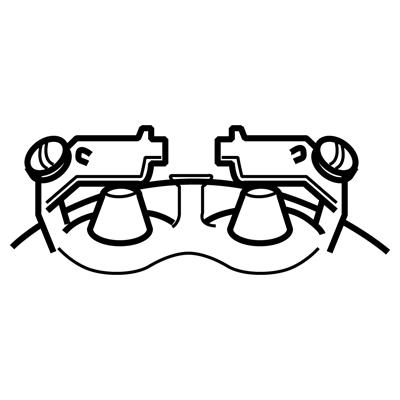

Base Screw Terminals,
Filament C-6 ,
Product Technology Incandescent,
Wattage 100,
Voltage 28
Rated Life 300 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 14° - 10 %,
Beam Spread - Vertical 6° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 60000
DIMENSIONS:
Maximum Overall Length (MOL) 2.7500 in (69.8 mm)
Bulb Diameter (DIA) 4.500 in (114.3 mm)
