4596, FSN6240-577-8450, GE Lamp
Product Description

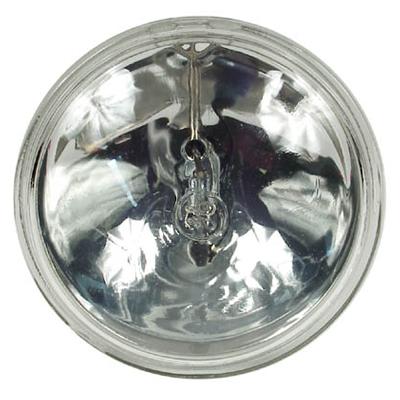

GE Lighting 4596, FSN6240-577-8450
GENERAL CHARACTERISTICS:
Lamp type Sealed Beam - PAR,
Bulb PAR36,
Base Screw Terminals,
Filament CC-8,
Product Technology Incandescent,
Wattage 250,
Voltage 28
Rated Life 25 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 11° - 10 %,
Beam Spread - Vertical 12° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 150000

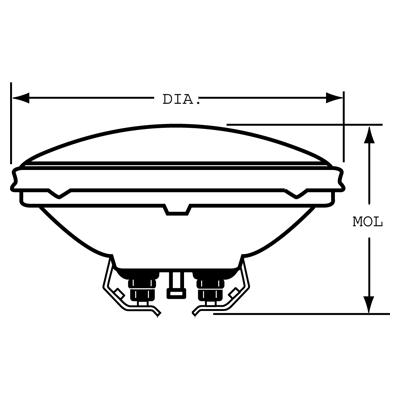

DIMENSIONS:
Maximum Overall Length (MOL) 2.7500 in (69.8 mm)
Bulb Diameter (DIA) 4.500 in (114.3 mm)
