4509, FSN6240-237-7867, MS25243-4509, GE Lamp
Product Description

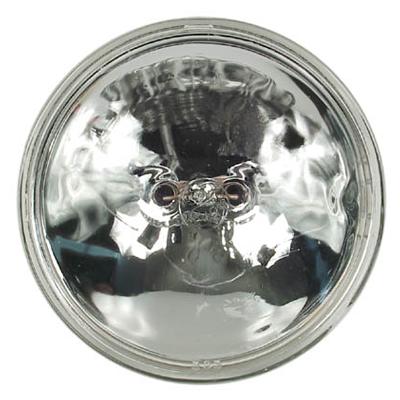

GE Lighting 4509, FSN6240-237-7867, MS25243-4509
GENERAL CHARACTERISTICS:
Lamp type Incandescent - PAR,
Bulb PAR36,
Base Screw Terminals,
Filament C-6,
Wattage 100,
Voltage 13,
Rated Life 25 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 12° - 10 %,
Beam Spread - Vertical 6° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 110000,

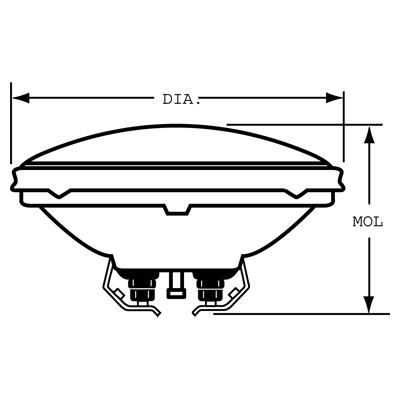

DIMENSIONS:
Maximum Overall Length (MOL) 2.7500 in (69.8 mm)
Bulb Diameter (DIA) 4.500 in (114.3 mm)
