4570, FSN6240-132-5328, MS28926-4570, GE Lamp
Product Description

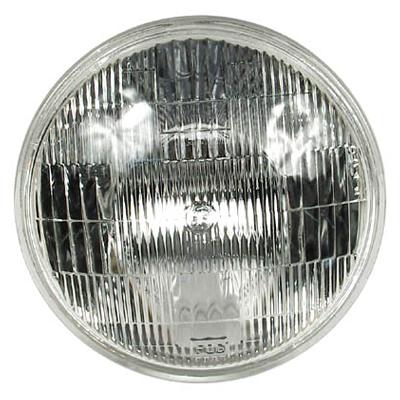

GE Lighting 4570, FSN6240-132-5328, MS28926-4570
GENERAL CHARACTERISTICS:
Lamp type Sealed Beam - PAR,
Bulb PAR46,
Base Screw Terminals,
Filament CC-6,
Product Technology Incandescent,
Wattage 150,
Voltage 28,
Rated Life 300 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 50° - 10 %,
Beam Spread - Vertical 9° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 32000,

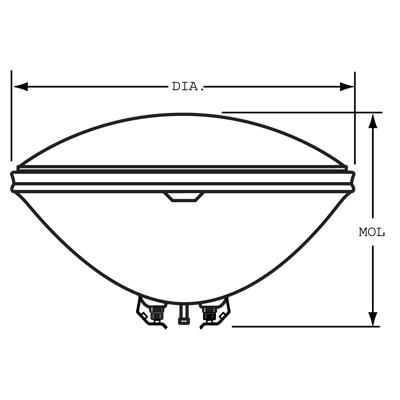

DIMENSIONS:
Maximum Overall Length (MOL) 3.7500 in (95.2 mm)
Bulb Diameter (DIA) 5.750 in (146.0 mm)
