4581, FSN6240-557-3065, MS25241-4581, GE Lamp
Product Description

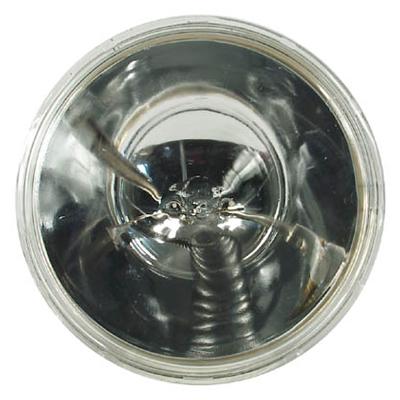

GE Lighting 4581, FSN6240-557-3065, MS25241-4581
GENERAL CHARACTERISTICS:
Lamp type Sealed Beam - PAR,
Bulb PAR46,
Base Screw Terminals,
Filament CC-8,
Product Technology Incandescent ,
Wattage 450,
Voltage 28
Rated Life 10 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 13° - 10 %,
Beam Spread - Vertical 14° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 400000

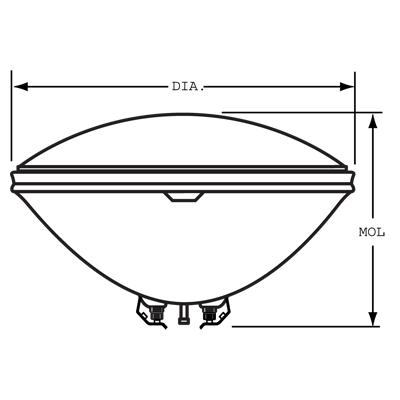

DIMENSIONS:
Maximum Overall Length (MOL) 3.1300 in (79.5 mm)
Bulb Diameter (DIA) 5.750 in (146.0 mm)
