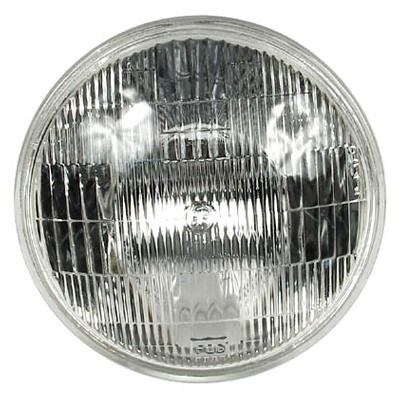

Q4554, GE Lamp
Product Description
GE Lighting Q4554
GENERAL CHARACTERISTICS:
Lamp type Sealed Beam - PAR,
Bulb PAR46,
Base Screw Terminals,
Filament CC-6,
Product Technology Halogen,
Wattage 450,
Voltage 28
Rated Life 100 hrs,
Primary Application Aircraft
PHOTOMETRIC CHARACTERISTICS:
Beam Spread - Horizontal 50° - 10 %,
Beam Spread - Vertical 11° - 10 %,
Max. Beam Candlepower (MBCP) (MAX) 65000

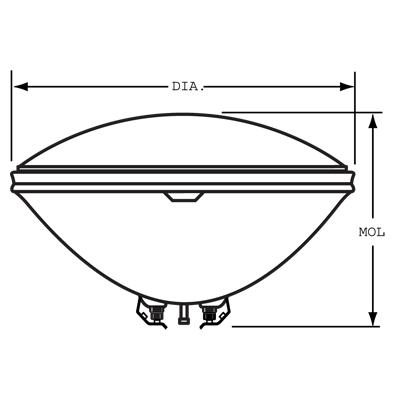

DIMENSIONS:
Maximum Overall Length (MOL) 2.6300 in (66.8 mm)
Bulb Diameter (DIA) 5.750 in (146.0 mm)
